Hydroponics PCB

I designed a custom hydroponics control PCB integrating an ESP32, taking it from schematic to layout and manufacturing through JLCPCB. The board functioned as intended, successfully validating the design and hardware integration.

Heavy Machinery

Specs: PCB design · ESP32 · Layout · Manufacturing (JLCPCB) · Bring-up

PCB layout

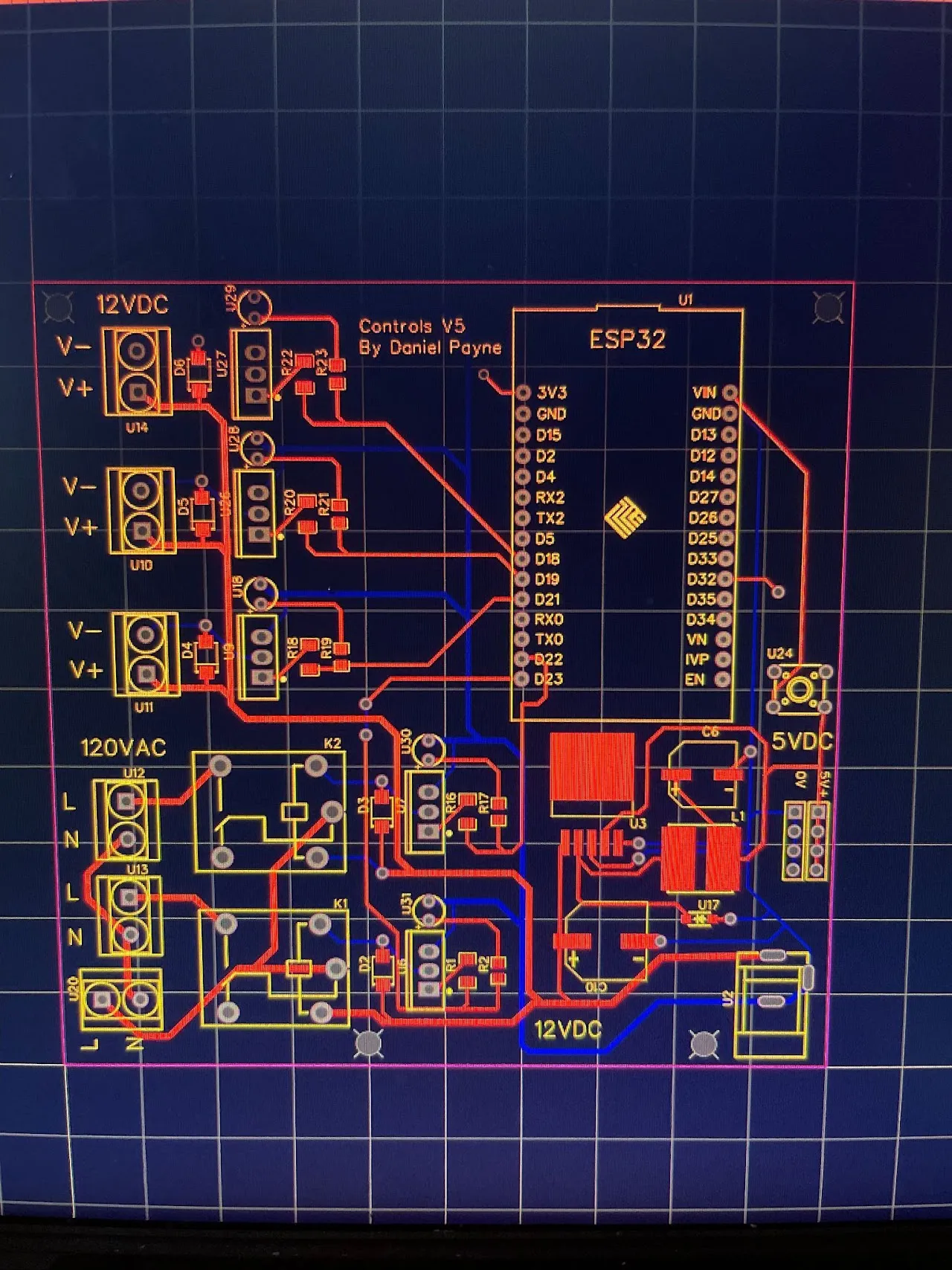

Hydroponics control PCB layout with the ESP32

The board

The PCB as ordered from JLCPCB, powered up

PCB board test
